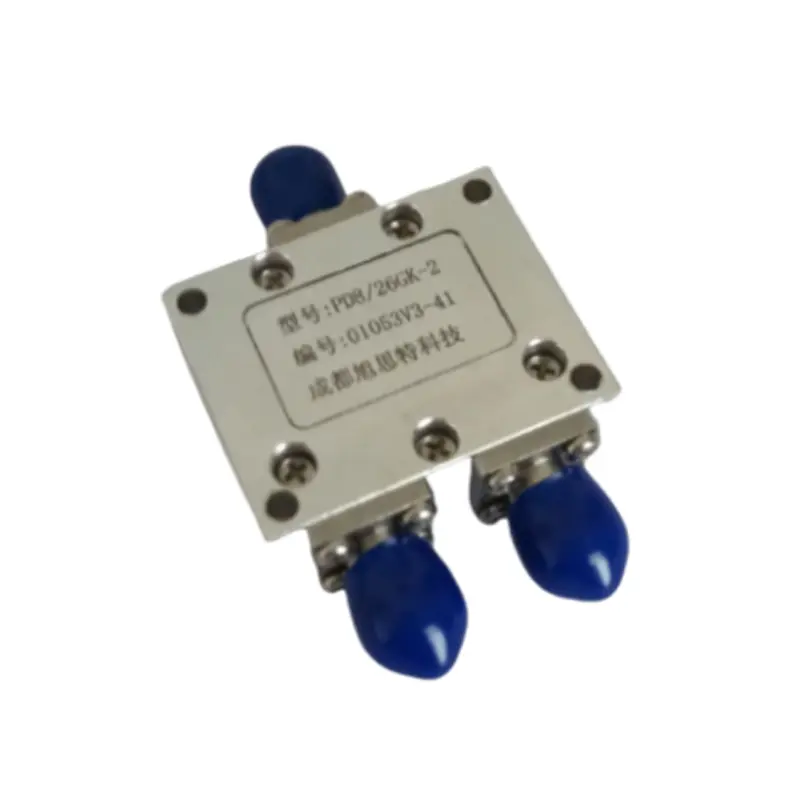

Wideband 450MHz-35GHz Power Divider, RF Microstrip Line Power Divider, 2-way Power Divider
Characteristics and Application
The XST 2-Way Power Splitter distributes the power of the input signal equally to the two output ports, each with half the power of the input. Our 2-way power splitter has low signal loss during the signal distribution process, ensuring that the quality of the distributed signal is not affected. The high degree of isolation avoids mutual interference between the output ports and ensures that the signals from each output port are independent. Our 2-way power splitters also have a wide operating bandwidth, which can be applied to the distribution of signals at a variety of frequencies.
Product Principle
| Product Name | 2-Way Power Divider |
| Frequency Range | 6-40 GHz |
| N | 2 |
| Insertion Loss | ≤1dB@6-30GHz |
| 1.5dB@30-40GHz | |
| VSWR | 1.8 |
| Isolation | ≥15dB@6-30GHz |
| ≥13dB@30-40GHz | |
| connector | 2.92mm-K with ¢0.38PIN |
| Impedance | 50 OHMS |

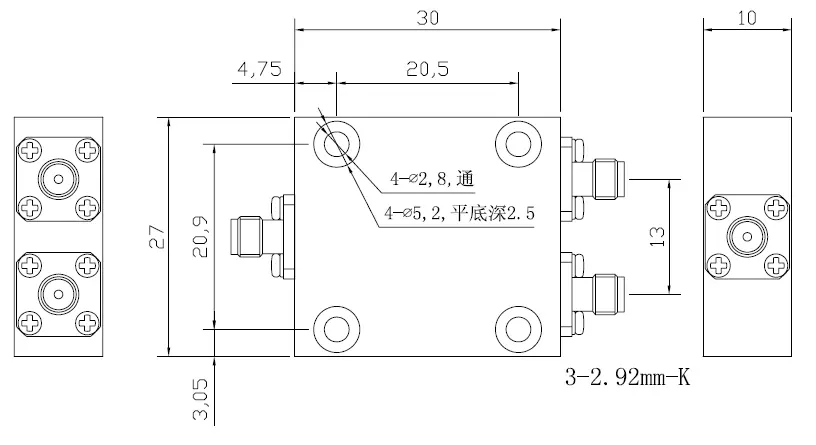

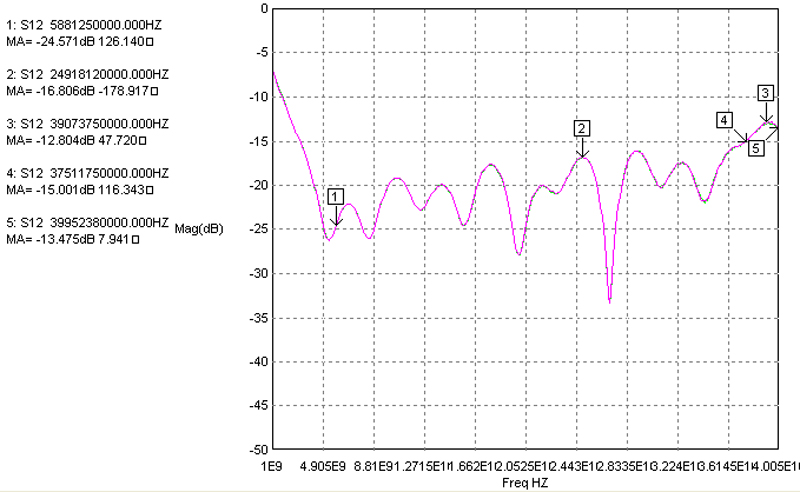

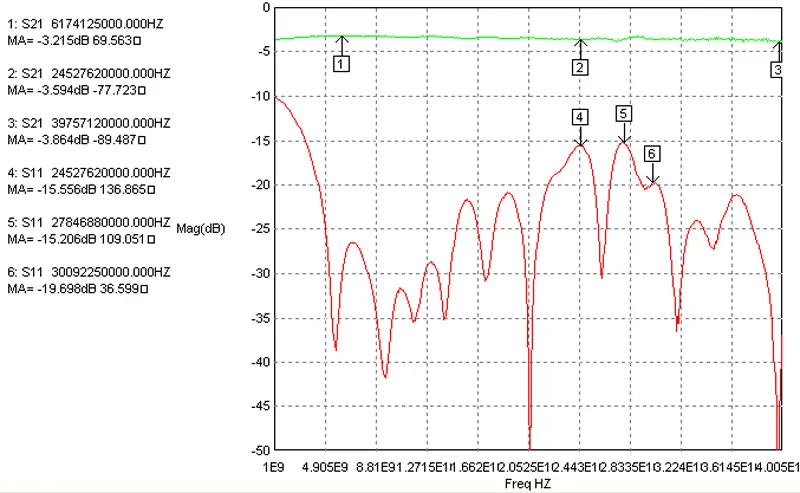

Typical Curve Chart
Technical Index
| N | Freq. Range（GHz） | IL（dB） | VSWR | Isolation（dB） | Amplitude（≤dB） | Phase | Conn. Type | Power（W） |
| 2 way | 450-500MHz | 1 | 1.5 | 18 | ±0.3dB | ±3° | SMA-K | 10 W |
| 2 way | 0.4-2.4 | 0.4 | 1.6 | 15 | ±0.3dB | ±3° | SMA-K | 10 W |
| 2 way | 1-1.8G | 0.7 | 1.3 | 18 | ±0.3dB | ±2° | SMA-K | 10 W |
| 2 way | 1-18 | 1.5 | 1.7 | 15 | ±0.4dB | ±5° | SMA-K | 10 W |
| 2 way | 1-40 | 3 | 1.6 | 16 | ±0.5 dB | ±5° | 2.92mm-k | 1 W |
| 2 way | 2-26.5 | 1.2 | 1.6 | 16 | ±0.3 dB | ±4° | SMA-K | 1 W |
| 2 way | 2.83-2.93 | 1.2 | 1.3 | 18 | ±0.3dB | ±3° | N-K | 10 W |
| 2 way | 3 | 1 | 1.3 | 18 | ±0.3dB | ±3° | SMA-K | 10 W |
| 2 way | 4-6 | 0.5 | 1.3 | 20 | ±0.3dB | ±3° | SMA-K | 10 W |
| 2 way | 6-11 | 0.5 | 1.35 | 20 | ±0.3dB | ±3° | SMA-K | 10 W |
| 2 way | 6-40 | 1.5 | 1.5 | 15 | ±0.4dB | ±5° | 2.92mm-K | 1 W |
| 2 way | 7.5-8.5 | 0.7 | 1.3 | 18 | ±0.3dB | ±3° | SMA-K | 10 W |
| 2 way | 8-26 | 0.8 | 1.5 | 17 | ±0.4dB | ±5° | 2.92mm-K | 1 W |
| 2 way | 18-26.5 | 1.2 | 1.5 | 18 | ±0.3 dB | ±3° | SMA-K | 1 W |
| 2 way | 26-40 | 0.8 | 1.5 | 16 | ±0.4dB | ±5° | 2.92mm-K | 1 W |
| 2 way | 29.4-31.2 | 0.5 | 1.5 | 18 | ±0.3dB | ±2.5° | BJ320flange | 100W |
| 2 way | 31-35 | 0.3 | 1.6 | 18 | ±0.2dB | ±2° | BJ320flange | 100W |
Remarks
Material: Aluminium (6061)
Unit: mm*mm*mm
Installation form is through-hole;
Unnotched dimension tolerance: ±0.3mm;
Installation size tolerance: ± 0.1mm
Customer Concerns
Choosing the right power splitter
Ensure that the operating frequency of the power divider covers the requirements of your application, and that the insertion loss and VSWR should be as low as possible to minimise signal loss. Isolation should be high enough to prevent signals from interfering with each other. Select the appropriate power splitter according to the maximum signal power your system can handle, and make sure the power splitter can withstand it without being damaged. Amplitude and phase balance are also extremely important metrics for systems that precisely control signals. Space and budget also need to be considered.
XST offers professional customisation of power dividers to suit your unique needs. Whether you need specific technical parameters such as frequency range, power capacity, VSWR, insertion loss, or have special requirements for dimensions and connectors, we can customise them to ensure that every detail meets your expectations.
Cost and Performance
XST's professional engineers perform a thorough cost-benefit analysis on every project to help customers weigh size, performance, and cost to achieve the optimal balance for the most cost-effective 2-way power splitter available. Standard products are often less costly, but may not exactly match the needs of your specific application. For this reason we offer a power splitter customisation service to meet your specific needs, allowing you to get a cost-effective solution that fits your requirements perfectly without exceeding your budget.
