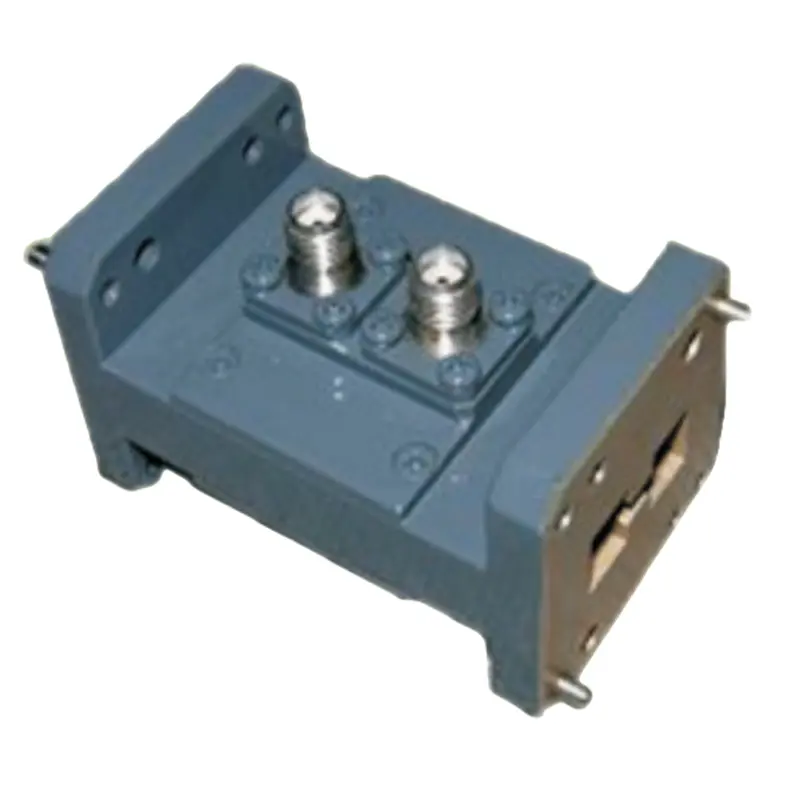

Waveguide Ring Coupler (500MHz-40GHz)/Military Quality, Excellent Performance

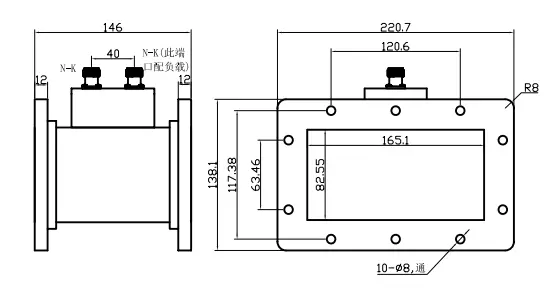

product description
The waveguide ring coupler achieves coupling by opening coupling holes in the common wall of the primary and secondary waveguides, which couple the electromagnetic energy in the primary waveguide to the secondary waveguide with a certain directionality. The directivity of the waveguide ring coupler is controlled by the size, shape and position of the coupling holes, and these parameters determine the magnitude of the output power at each port of the sub-waveguide. Waveguide ring coupler is used in radar, communication and other systems for directional transmission of signals, transceiver duplex, so that transceiver signals are isolated from each other, and transceivers can share the same antenna.
Technical indicators
| Model | Freq. Range（GHz） | Band width | VSWR | Coupling（dB） | Directivity（dB） | Conn.Type | Conn. Type | Flange | |
| XST-CP9WH | 0.75-1.15 | 10% | 1.3 | 18-60 | 15-20 | N | WR975 | BJ9 | FDP/FDM |
| XST-CP12WH | 0.96-1.46 | 10% | 1.3 | 18-60 | 15-20 | N | WR770 | BJ12 | FDP/FDM |
| XST-CP14WH | 1.13-1.73 | 10% | 1.3 | 18-60 | 15-20 | N | WR650 | BJ14 | FDP/FDM |
| XST-CP18WH | 1.45-2.20 | 10% | 1.3 | 18-60 | 15-20 | N | WR510 | BJ18 | FDP/FDM |
| XST-CP22WH | 1.72-2.61 | 10% | 1.3 | 18-60 | 15-20 | N | WR430 | BJ22 | FDP/FDM |
| XST-CP26WH | 2.17-3.30 | 10% | 1.3 | 18-60 | 15-20 | N/SMA | WR340 | BJ26 | FDP/FDM |
| XST-CP32WH | 2.60-3.95 | 10% | 1.3 | 18-60 | 15-20 | N/SMA | WR284 | BJ32 | FDP/FDM |
| XST-CP40WH | 3.22-4.90 | 10% | 1.3 | 18-60 | 15-20 | N/SMA | WR229 | BJ40 | FDP/FDM |
| XST-CP48WH | 3.94-5.99 | 10% | 1.3 | 18-60 | 15-20 | N/SMA | WR187 | BJ48 | FDP/FDM |
| XST-CP58WH | 4.64-7.05 | 10% | 1.3 | 18-60 | 15-20 | N/SMA | WR159 | BJ58 | FDP/FDM |
| XST-CP70WH | 5.38-8.17 | 10% | 1.3 | 18-60 | 15-20 | N/SMA | WR137 | BJ70 | FDP/FDM |
| XST-CP84WH | 6.57-9.99 | 10% | 1.3 | 18-60 | 15-20 | N/SMA | WR112 | BJ84 | FBP/FBM/FBE |
| XST-CP100WH | 8.20-12.4 | 10% | 1.3 | 18-60 | 15-20 | SMA | WR90 | BJ100 | FBP/FBM/FBE |
| XST-CP120WH | 9.84-15.0 | 10% | 1.3 | 18-60 | 15-20 | SMA | WR75 | BJ120 | FBP/FBM/FBE |
| XST-CP140WH | 11.9-18.0 | 10% | 1.3 | 18-60 | 15-20 | SMA | WR62 | BJ140 | FBP/FBM/FBE |
Nots
Excellent Performance
XST's waveguide ring couplers have good matching and isolation, wide frequency range, low insertion loss, low transmission loss, high directivity, stability and reliability, and other performance characteristics that together determine the applicability and efficiency of waveguide ring couplers in microwave and RF systems. Waveguide ring couplers play an important role in microwave communications, radar systems and other fields.
Design and Manufacturing Excellence
XST's dedication to excellence is evident in the design and manufacture of RF directional couplers from 500MHz to 40GHz. By combining cutting-edge technology with the industry's best standards, every process, from the selection of top-quality materials to the design of precision components, is designed to exceed expectations for reliability and stability, and XST's commitment to rigorous quality testing of every coupler ensures superior performance to help our customers move forward in RF technology.
Customised Services
One of XST's core competencies is providing a full range of customised services for high-end RF waveguide couplers in the 500MHz-40GHz band. With a deep understanding of the unique challenges of each project, we work closely with our customers to pinpoint their individual needs, from power capacity to frequency bandwidth to precise coupling, and with our in-depth industry knowledge and innovation, XST ensures that every waveguide coupler solution is tailored to meet the customer's specific needs, creating a customised waveguide coupler that will lead the way in leading-edge applications of RF technology.
High Quality at Low Prices
XST not only adheres to the highest standards of quality and customisation, but also understands the importance of price competitiveness in the 500MHz to 40GHz RF waveguide coupler market. We continually optimise our manufacturing processes and implement efficient cost controls to ensure that we provide our customers with cost-effective solutions while maintaining superior quality. What's more, we offer sample testing services so that our customers can experience the performance and compatibility of our products before they make a major investment, thus strengthening their confidence in choosing XST products and creating a win-win future together.
Send us your requirements and we will provide a coupler that meets your specific needs.
