RF Microwave 2GHz-40GHz 32-way Power Splitter - Flexible Customisation, Super Cost Effective
Characteristics and Application
XST's 32-way splitter is a high-performance RF/microwave device that is used to distribute a signal source to 32 different output paths. It maintains stable performance over the 2-40G frequency range and can withstand high power with low loss, high isolation, good amplitude balance and phase balance, ensuring signal consistency and stability.
Product Principle
| Product Name | 32-Way Power Divider | |
| Frequency Range | 40 -50GHz | 50 -67GHz |
| N | 16 | 16 |
| Insertion loss | ≤6.4 | ≤8.3 |
| VSWR | ≤1.9 | ≤1.9 |
| Amplitude | ±0.9 | ±1.1 |
| Phase | ±12 | ±14 |
| connector | 1.85mm | |

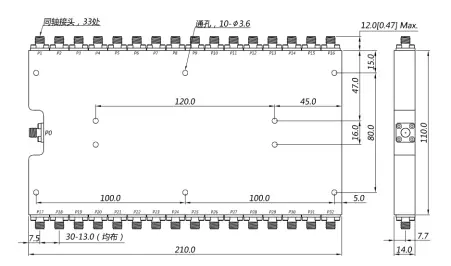

| Size | 36x210x12.7(L x W x H) | |
| Power | W(Max.) CW：FOR 12 REV 1 Peak：1000 |
Technical Index
| N | Freq. Range | IL | VSWR | Isolation | Amplitude | Phase | Conn. Type | Power |
| （GHz） | （dB） | （dB） | （≤dB） | （W） | ||||
| 32 | 2-18 | 3.7 | 1.6 | 16 | ±0.6 | ±7 | SMA-K | 30 W |
| 32 | 8-18 | 5.7 | 1.6 | 18 | ±0.8 | ±9 | SMA-K | 30 W |
| 32 | 6-18 | 4.2 | 1.6 | 18 | ±0.6 | ±8 | SMA-K | 30 W |
| 32 | 18-26.5 | 5.6 | 1.7 | 16 | ±0.8 | ±11 | SMA-K | 30 W |
| 32 | 26.5-40 | 7.5 | 1.8 | 16 | ±1.1 | ±14 | 2.92mm-k | 30 W |
| 32 | 24-44 | 6.5 | 1.8 | 16 | ±1 | ±13 | 2.4mm | 30 W |
| 32 | 26.5-40 | 6 | 1.8 | 16 | ±0.8 | ±12 | 2.92mm-k | 30 W |
Customer Concerns

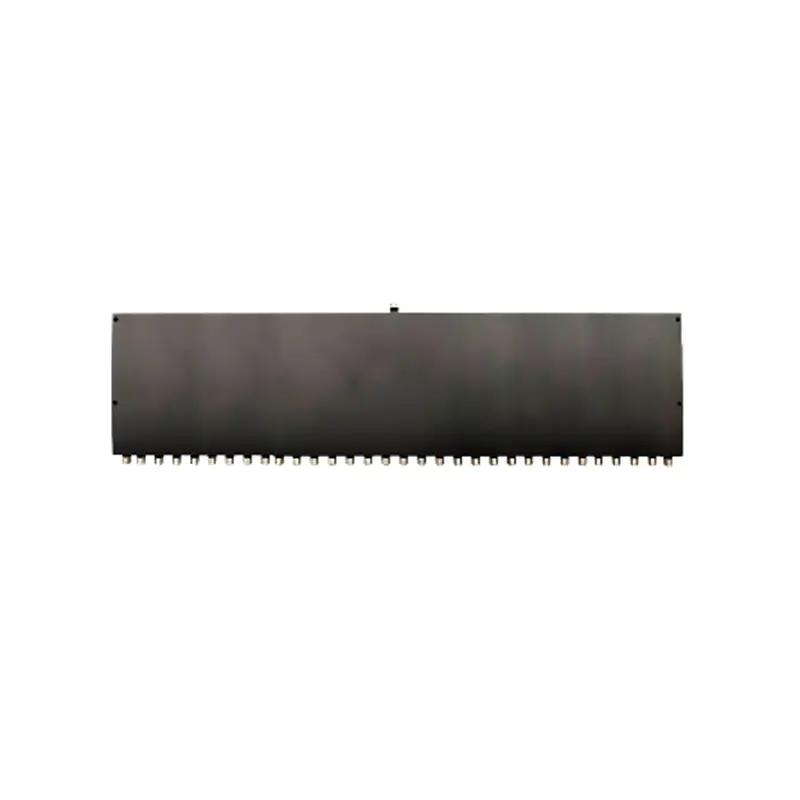

XST 32-way power divider
XST's innovative 32-way power divider sets a new benchmark in microwave passive components. This power divider is capable of efficient signal splitting, power distribution and channel equalisation over an extremely wide frequency range, and its wide bandwidth makes it suitable for a wide range of scenarios to meet different needs. Excellent phase balance, high power handling capability and low insertion loss ensure outstanding performance in a wide range of applications. High isolation between ports and low VSWR design ensure system stability and reliability. Whether it's communications, navigation, radar, aerospace, or military defence, this product delivers outstanding performance and reliability. Our 32-way power divider is not only of excellent quality, but also competitively priced. Whether it is technical performance or economic benefits, it is the ideal choice for you.
XST Advantage
- XST is a leading manufacturer of microwave components. XST independently develops and produces power dividers, combiners, filters, couplers, amplifiers, and other microwave products that are widely used and well received.
- With a complete product line, product development, manufacturing, testing, etc. are all completed in-house to effectively ensure product consistency, production efficiency and reliability.
- With sufficient manufacturing conditions, we are able to undertake high-volume design and production requirements to ensure rapid delivery.
- Dual control system of quality and cost, under the premise of ensuring quality, to provide market competitive prices, really good value for money.
- Product customisation, flexible customisation services to ensure that the product fully meets your specific needs.
Customers
XST has a wealth of experience in the industry, for the communications, navigation, radar, national defence and military industry enterprises to provide a large number of high-performance products and services.XST cooperation customers are concentrated in the research institutes (China Electronic Science Research Institute, Mianyang Jiuyuan), scientific research institutes (Institute of Physics of the Chinese Academy of Sciences, the CLP 29, the Third Academy of Sciences, Institute 303), the University (National University of Defense Technology) and so on.XST is committed to the professional products and high quality service to continue to create value for customers. XST is committed to creating value for customers through professional products and quality services.
Providing high-quality products, customised solutions and efficient services to build long-term partnerships with our customers is XST's everlasting commitment. We not only provide excellent products, but also provide lifelong technical support in the microwave field, continue to create value for our customers and ensure that their needs are fully satisfied. May we have the honour to be your partner and work hand in hand for mutual development. Please send your request, we will reply you as soon as possible!
