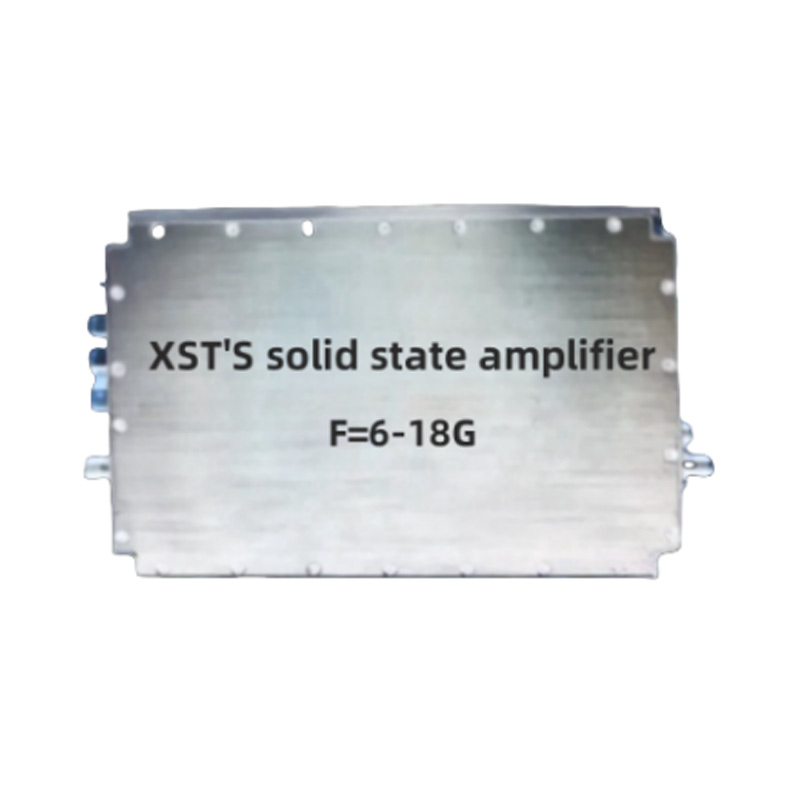

High Performance, High Power, Ultra Wideband, Low Noise 6-18GHz Power Amplifiers - In Stock, Large Quantities Available
product description
Our ultra-wideband RF amplifiers are new types of high-frequency power amplifiers with the ability to process and transmit signals in a short period of time. Their key features include excellent performance such as high-speed transmission, low latency, high efficiency, excellent frequency stability and gain flatness, which ensures that signals are not distorted during the amplification process.
Our ultra-wideband RF amplifiers are manufactured using precision components to ensure superior electrical performance and durability.
Product Principle
For more customised amplifier indicators, please contact us
| frequency（Ghz） | gain (db) | P-1typ | electricity(v) | power wastage( typ) | stray | connector |
| 2-8 | ≥24 | ≥43 | +28 | 5.5A | -60dbc typ | SMA-50K |
| 2-18 | ≥20 | ≥40 | +28 | 3.5A typ | -60dbc typ | SMA-50K |
| 2-6 | ≥20 | ≥43 | +28 | 3.2A typ | -60dbc typ | SMA-50K |
| 7-13 | ≥24 | ≥45 | +28 | 5A typ | -60dbc typ | SMA-50K |
| 6-18 | ≥25 | ≥43 | +28 | 3.5A typ | -60dbc typ | SMA-50K |
| 6-18 | ≥55 | ≥43 | +28 | 4.5A typ | -60dbc typ | SMA-50K |
| 8-12 | ≥45 | ≥45.5 | +28 | 4.5A typ | -60dbc typ | SMA-50K |
| 13.5-15 | ≥20 | ≥40 | +28 | 3A typ | -60dbc typ | 0.38mm needle |
| 13.5-15 | ≥20 | ≥42.5 | +28 | 3A typ | -60dbc typ | 0.38mm needle |
| 13.5-15 | ≥20 | ≥43 | +28 | 3A typ | -60dbc typ | 0.38mm needle |
| 13.5-15 | ≥25 | ≥45 | +28 | 6A typ | -60dbc typ | 0.38mm needle |
| 13.5-15 | ≥25 | ≥45.5 | +28 | 6A typ | -60dbc typ | 0.38mm needle |
Nots
High Speed Transmission with Low Latency
XST's ultra-wideband RF amplifiers are designed to amplify and transmit signals in a fraction of the time, ensuring high-speed data flow. The low-latency feature allows the signal to be transmitted with virtually no lag, ensuring real-time transmission of the signal.
Outstanding Frequency Stability and Gain Flatness
XST's ultra-wideband RF amplifiers are precision calibrated and tuned to ensure excellent frequency stability and gain flatness across the entire operating frequency band. This means that the amplifier provides stable gain and output power regardless of signal frequency variations, ensuring that the signal is not distorted during amplification and improving overall system performance.
Precision Components and Superior Quality
Ultra-wideband RF amplifiers are made from high quality raw materials and advanced manufacturing processes to ensure superior electrical performance and durability. These components are rigorously screened and tested to ensure they meet the most demanding applications. At the same time, the precision manufacturing process increases the reliability and stability of the device and reduces the failure rate.
Wide range of application prospects
Thanks to their outstanding performance and quality, your ultra-wideband RF amplifiers offer a wide range of applications in wireless communications, radar systems, imaging technology, medical devices and more. Whether they are used to boost the power of transmitted signals or to increase data transmission rates and reliability, they offer unique advantages.
We are looking forward to establishing contact with you and letting you experience the quality and performance of our RF amplifiers.
Whether it is technical consultation, product selection, customised service or after-sales support, we will do our best to provide you with the most professional and efficient solutions.
