Highly directional coupler
- Frequency paradigm coverage: 750MHz-60GHz;
- High directivity
- Low insertion loss;
- High coupling accuracy
- High power rating
- Excellent VSWR
- Industry standard connectors

XST offers OEM and ODM services for power dividers with free samples and MOQ≥1.
If you have any questions, please send your questions and needs.

    product description

    Our 750MHz-60GHz band highly directional coupler is a high-performance passive device that combines low insertion loss, high power handling capability, high directionality, and many other excellent properties. It is ideal for optimal signal transmission and monitoring, and can significantly improve the performance and reliability of communication systems to meet the evolving needs of modern communication technology. Whether in wireless communications, satellite communications, radar systems or other high-frequency electronics, our highly directional couplers will play an important role.

    Technical indicators

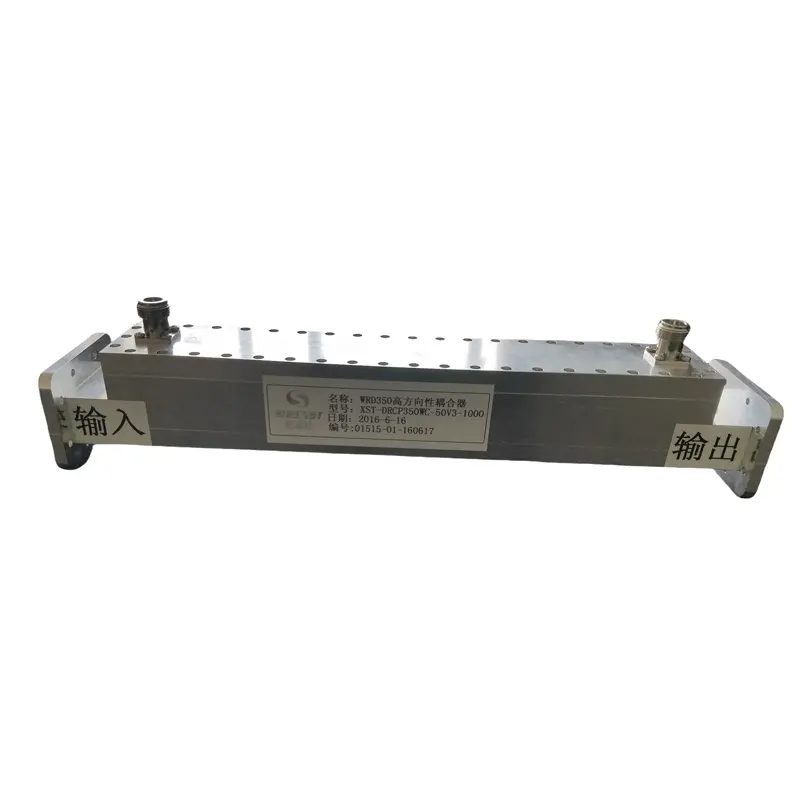

    Product Name  WRD350 Highly directional couplers
    Frequency Range  4GHz -8GHz
    Insertion Loss  ≤0.3db
    VSWR  ≤1.15
    Coupling  37dB±2dB
    Directionality  20dB
    port connector  main line:WRD350D24 Standard Flange
     sub line: N-K
    Power Handling  1000W
    Size  343*69.9*50.8mm
    Impedance  50 OHMS
    Model Freq.Range(GHz) Band width Insertion loss(dB) VSWR Coupling(dB) Directivity(dB) Conn. Type Flange
    XST-CP9WC 0.75-1.15 20% 0.3 1.15 3-60 20-40 WR975 BJ9 FDP/FDM
    XST-CP12WC 0.96-1.46 20% 0.3 1.15 3-60 20-40 WR770 BJ12 FDP/FDM
    XST-CP14WC 1.13-1.73 20% 0.3 1.1 3-60 20-40 WR650 BJ14 FDP/FDM
    XST-CP18WC 1.45-2.20 20% 0.3 1.1 3-60 20-40 WR510 BJ18 FDP/FDM
    XST-CP22WC 1.72-2.61 20% 0.3 1.1 3-60 20-40 WR430 BJ22 FDP/FDM
    XST-CP26WC 2.17-3.30 20% 0.3 1.1 3-60 20-40 WR340 BJ26 FDP/FDM
    XST-CP32WC 2.60-3.95 20% 0.3 1.1 3-60 20-40 WR284 BJ32 FDP/FDM
    XST-CP40WC 3.22-4.90 20% 0.3 1.1 3-60 20-40 WR229 BJ40 FDP/FDM
    XST-CP48WC 3.94-5.99 20% 0.3 1.1 3-60 20-40 WR187 BJ48 FDP/FDM
    XST-CP58WC 4.64-7.05 20% 0.3 1.1 3-60 20-40 WR159 BJ58 FDP/FDM
    XST-CP70WC 5.38-8.17 20% 0.3 1.1 3-60 20-40 WR137 BJ70 FDP/FDM
    XST-CP84WC 6.57-9.99 20% 0.3 1.1 3-60 20-40 WR112 BJ84 FBP/FBM/FBE
    XST-CP100WC 8.20-12.4 20% 0.3 1.1 3-60 20-40 WR90 BJ100 FBP/FBM/FBE
    XST-CP120WC 9.84-15.0 20% 0.3 1.1 3-60 20-40 WR75 BJ120 FBP/FBM/FBE
    XST-CP140WC 11.9-18.0 20% 0.3 1.1 3-60 20-40 WR62 BJ140 FBP/FBM/FBE
    XST-CP180WC 14.5-22.0 20% 0.3 1.1 3-60 20-40 WR51 BJ180 FBP/FBM/FBE
    XST-CP220WC 17.6-26.7 20% 0.3 1.1 3-60 20-40 WR42 BJ220 FBP/FBM/FBE
    XST-CP260WC 21.7-33.0 20% 0.3 1.15 3-60 20-40 WR34 BJ260 FBP/FBM/FBE
    XST-CP320WC 26.5-40.0 20% 0.3 1.15 3-60 20-40 WR28 BJ320 FBP/FBM/FBE
    XST-CP400WC 32.9-50.1 20% 0.5 1.15 3-60 20-40 WR22 BJ400 FUGP
    XST-CP500WC 39.2-59.6 20% 0.5 1.15 3-60 20-40 WR19 BJ500 FUGP
