High coupling accuracy RF bi-directional coupler - High-quality materials, fine craftsmanship, to create your satisfaction
product description
Our bi-directional couplers have high coupling degree, low insertion loss, good isolation makes the signal loss in the transmission process is minimal, to ensure the efficient transmission of the signal, improve the overall efficiency of the system. High-quality materials and precise manufacturing process make our dual directional couplers can still maintain stability and reliability in a variety of complex environments.
Technical indicators

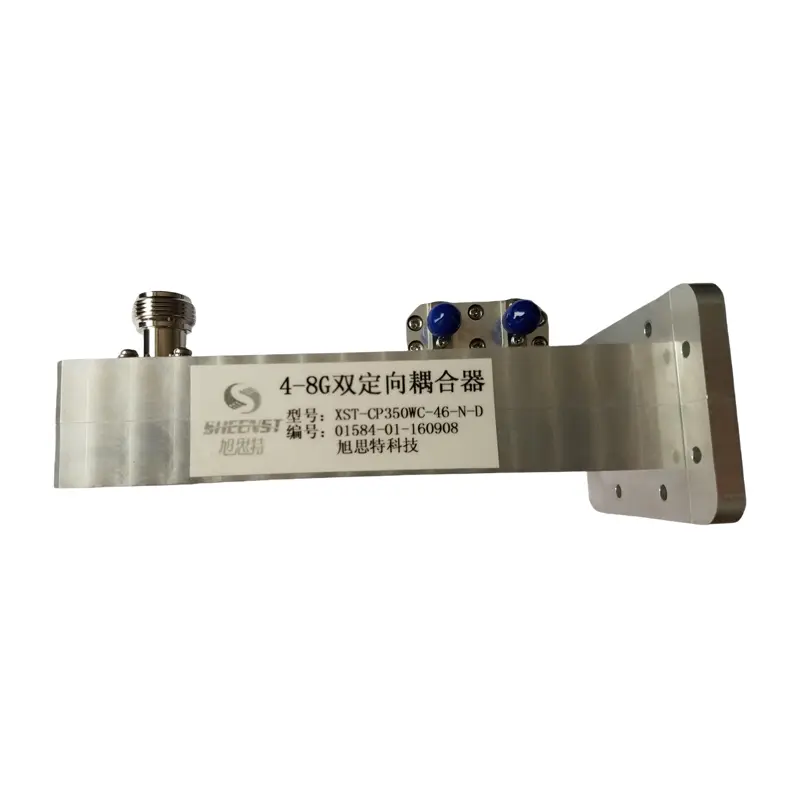

| Product Name | 4-8G Bi-directional coupler |
| Frequency Range | 4GHz -8GHz |
| Insertion Loss | ≤0.3db |
| VSWR | ≤1.3 |
| Coupling | 46dB±1dB |
| Directionality | 15dB |
| port connector | main line:WRD350D24standard flange |
| sub line: SMA-K | |
| Power Handling | 250W |
| Size | 140*69.9*50.8mm |
| Impedance | 50 OHMS |
| Model | Freq.Range（GHz） | Insertion loss（dB） | VSWR | Coupling（dB） | Directivity（dB） | Conn.Type | Power（W） | Dimension（mm） |
| XST-CP112.5M/49S-10 | 0.05-1 | 1 | 1.3 | 10 | 22 | SMA-K | 10W | 30.4*26.4*10 |
| XST-CP1085M/270N-30 | 0.95-1.22 | 0.3 | 1.25 | 30 | 20 | N-K | 100W | 99*42*22.5 |
| XST-CP3G/2N-30 | 45326 | 0.5 | 1.25 | 30 | 16 | thread：N-K | 50W | 69.14*61*21.3 |
| Sub line：SMA-K | ||||||||
| XST-CP2.15G/0.3S-20 | 2-2.3 | 1.5 | 1.3 | 20 | 15 | SMA-K | 10W | 66*29.5*13.44 |
| XST-CP2.35G/0.3N-5 | 2.2-2.5 | 0.5 | 1.3 | 5±0.3 | 15 | N-K | 20W | 55*21*18 |
| XST-CP4G/4N-20 | 45328 | 0.4 | 1.3 | 20 | 20 | thread：N-K | 100W | 102.7*53.5*41.5 |
| Sub line：SMA-K | ||||||||
| XST-CP9G/6N-20 | 45455 | 0.4 | 1.3 | 20 | 20 | thread：N-K | 100W | 62*47*35 |
| Sub line：SMA-K | ||||||||
| XST-CP12G/12N-40 | 45461 | 0.7 | 1.25 | 40 | 15 | thread：N-K | 100W | 51.5*42*18 |
| Sub line：SMA-K | ||||||||
| XST-CP15.5G/19K-10 | 45468 | 1.5 | 1.3 | 10±0.5 | 15 | 2.92mm-K | 10W | 34*17.55*9.85 |
| XST-CP13.5G/3S-15 | 45641 | 0.6 | 1.25 | 15 | 25 | SMA-K | 20W | 130*35.8*24.8 |
| XST-CP24.5G/13K-20 | 18-31 | 1.5 | 1.3 | 20 | 15 | 2.92mm-K | 10W | 28*16*10 |
| XST-CP34G/12K-10 | 28-40 | 1 | 1.5 | 10 | 15 | 2.92mm-K | 10W | 130*35.8*24.8 |
