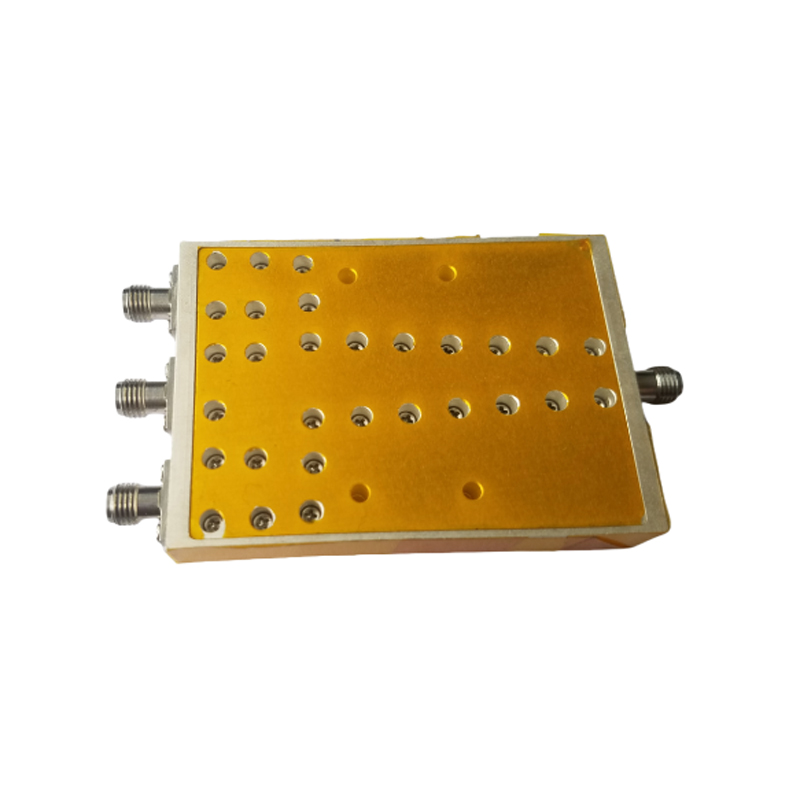

Flexibility To Customise 200MHZ-67GHZ 3-Way Power Divider, Various Structural Designs
Characteristics and Application
The three-way power splitter distributes the power of the input signal equally to the three output ports, providing excellent performance:
- Low Insertion Loss: Low insertion loss ensures signal transmission efficiency.
- High isolation: less signal interference between output ports.
- Good VSWR: Low signal reflection and power loss.
- Wide frequency range: Covering the frequency range from 200MHz to 67GHz.
- High power capacity: able to withstand high input power, suitable for high power applications.
Product Principle

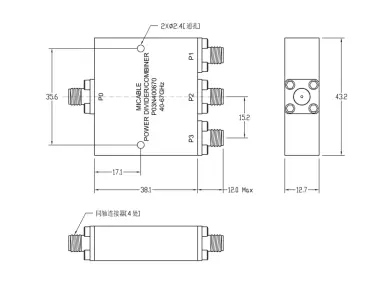

| Product Name | 3-Way Power Divider |
| Frequency Range | 4GHz -12GHz |
| N | 3 |
| Insertion Loss | ≤0.9dB |
| VSWR | ≤1.35 |
| Phase | ±4° |
| Amplitude | ±0.2dB |
| connector | SMA-K |
| Size | 69.7x 49.3x 12(L x W x H)mm |
| Impedance | 50 OHMS |
Technical Index
| N | Freq. Range（GHz） | IL（dB） | VSWR | Isolation（dB） | Amplitude（≤dB） | Phase | Conn. Type | Input power（W） |
| 3 way | 134-174MHz | 1 | 1.35 | 18 | ±0.5dB | ±5° | N-K | 50W |
| 3 way | 134-3700MHz | 3.6 | 1.5 | 18 | ±0.5dB | ±5° | N-K | 20W |
| 3 way | 136-174MHz | 0.4 | 1.3 | 20 | ±0.5dB | ±5° | N-K | 50W |
| 3 way | 300-500MHz | 0.6 | 1.35 | 20 | ±0.5dB | ±5° | N-K | 50W |
| 3 way | 698-2700MHz | 0.6 | 1.3 | 20 | ±0.5dB | ±5° | N-K/SMA-K | 50W |
| 3 way | 698-3800MHz | 1.2 | 1.3 | 20 | ±0.5dB | ±5° | N-K/SMA-K | 50W |
| 3 way | 698-4000MHz | 1.2 | 1.3 | 20 | ±0.5dB | ±5° | N-K/SMA-K | 50W |
| 3 way | 698-6000MHz | 2.8 | 1.45 | 20 | ±0.5dB | ±5° | N-K/SMA-K | 50W |
| 3 way | 2-6.2 | 2 | 1.5 | 15 | ±1dB | ±5° | SMA-K | 50W |
| 3 way | 2-8 | 1 | 1.4 | 18 | ±0.5dB | ±5° | SMA-K | 30W |
| 3 way | 2-18 | 1.6 | 1.8 | 16 | ±0.5dB | ±5° | SMA-K | 30W |
| 3 way | 18-26.5 | 1.4 | 1.5 | 18 | ±0.5dB | ±5° | 2.92mm-k | 30W |
| 3 way | 18-40 | 2.1 | 1.8 | 16 | ±0.7dB | ±8° | 2.92mm-k | 30W |
Customer Concerns
Performance Guarantee
• Ensure that the frequency range in which the power splitter operates properly is suitable for the required application frequency
• Ensure that the power divider operates properly even at maximum power.
• Ensure that the insertion loss, VSWR and isolation are within the required range, the smaller the loss the better, the greater the isolation the better.
• Ensure that the amplitude balance and phase balance are well balanced and consistent
Quality & Price
Performance: XST's power dividers are manufactured with high quality electronic components through advanced and mature technology, XST also has a strict quality control system, each microwave product undergoes a strict quality control inspection process at the factory to ensure its performance and service life, compared to other brands, our products show excellent quality differences in durability, performance and material selection.
Price: High quality doesn't mean high price, XST reduces cost by optimising production process, mass purchasing, and improving efficiency, which makes our power dividers maintain quality while still being affordable.
According to our customers' feedback, our products have a clear market advantage in both performance and price.
Customised services
XST understands that each partner has their own unique needs and for this reason we offer a wide range of customisation options.
Customisation is another key advantage offered by our factory. We understand the specifications and configurations of power dividers in different applications. We offer flexible customisation options to meet individual requirements.
Our experienced technical team works closely with our customers to understand their requirements and provide tailor-made solutions to ensure that they receive a product that is perfectly suited to their unique application.
