Duplexer/customised various indicators, sizes, connectors duplexer/military quality, excellent performance, stable and reliable

Features

GJB9001B-2009 Military Industrial Certification
ISO9001:2008 quality certification
Duplexer performance:
- Higher isolation
- Low insertion loss
- Wide bandwidth
- Good stability
- Compact design
- High reliability

XST offers OEM and ODM services for power dividers with free samples and MOQ≥1.
If you have any questions, please send your questions and needs.

    product description

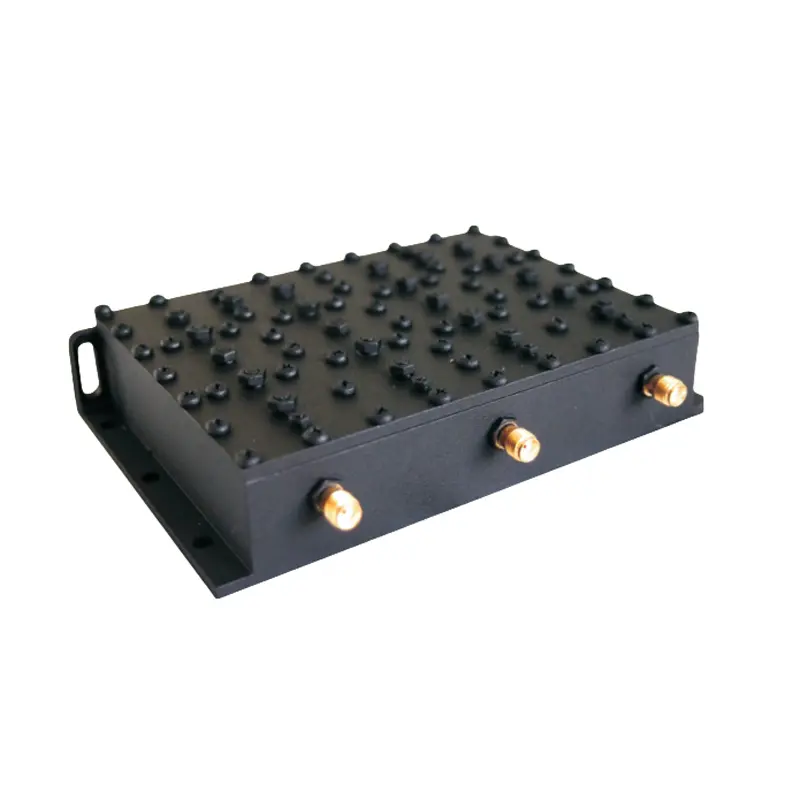

    A duplexer is a relatively special bi-directional three-terminal filter. A duplexer uses filtering and signal separation techniques to ensure that transmitted and received signals can be transmitted through the same pair of antennas at the same time and without interfering with each other. Our diplexers feature miniaturisation and low insertion loss, high isolation, frequency stability and high attenuation. Our duplexers are tailored to suit different applications by the types of frequencies, shapes and sizes, terminal configurations, and specification values they support.

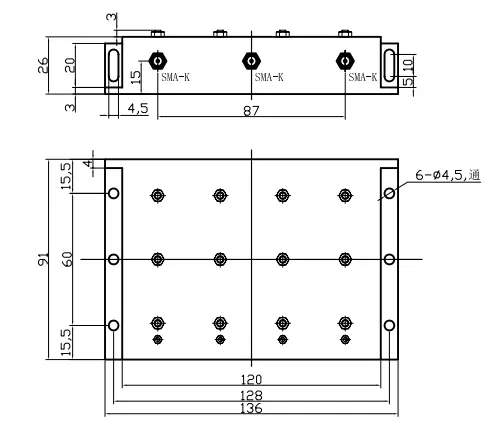

    product-description1

    Technical indicators

    Model Freq.Range Insertion loss VSWR Isolation Material Appearance Dimension
    DX-12M-60 704-716MHz 734-746MHz 1dB 1.4 60dB N-K aluminium Black paint 140*130*40mm
    DX-3M-80 223-226MHz 232-235MHz 2dB 1.3 80dB SMA-K aluminium Black paint 182*138*101mm
    DX-24M-80 885-909MHz 930-954MHz 1.3dB 1.3 80dB SMA-K aluminium Black paint 282*70*56mm
    DX-10M-80 880-915MHz 825-860MHz 2dB 1.3 80dB SMA-K aluminium Black paint 182*138*90mm
    DX-35M-55 825-835MHz 870-880MHz 1.6dB 1.4 55dB SMA-K aluminium Black paint 256*80*60mm
    DX-75M-80 1710-1785MHz 1805-1880MHz 1.8dB 1.5 80dB SMA-K aluminium Black paint 192*116*40mm
    DX-60M-90 1850-1910MHz 1930-1990MHz 1.8dB 1.6 90dB N-K aluminium Black paint 124*105*40mm
    DX-60M-80 1920-1980MHz 2110-2170MHz 0.8dB 1.5 80dB N-K aluminium Black paint 165*55*48mm
    DX-30M-60 5.72-5.75MHz 5.81-5.84MHz 2.5dB 1.5 60dB SMA-K aluminium Black paint 94*30*26mm
    DX-30M-60 5.80-5.83MHz 5.86-5.89MHz 2dB 1.5 60dB SMA-K aluminium Black paint 158*130*30mm
    DX-120M-90 12.81-12.93MHz 13.07-13.19MHz 1.8dB 1.5 90dB BJ120flange aluminium Black paint 137*92*30mm
    DX-126M-65 14.739-14.865MHz 14.229-15.535MHz 1.2dB 1.2 65dB BJ140flange aluminium Black paint 210*45*30mm
    DX-600M-95 14.2-14.8MHz 15.6-16.2MHz 0.7dB 1.25 95dB SMA-K aluminium Black paint 100*30*30mm

    Nots

    Design Phase--Forward planning and risk prevention and control

    At the beginning of the diplexer design, XST conducts a detailed requirement analysis and technical evaluation in the spirit of scientific rigour. We gain in-depth insight into the application requirements and accurately identify potential risks and problems, laying a solid foundation for the duplexer design. We select industry-leading components and materials, incorporate innovative design concepts, and optimise the duplexer structural layout to ensure that all components work seamlessly together and synergistically to enhance product stability and reliability.

    Manufacturing Process-- Fine Management and Excellent Quality

    Quality is the lifeline of XST. We have established a strict standardised quality management system for duplexers, covering every step from design to production, to ensure that the duplexer production process strictly follows international standards and industry norms. We set up key control points, implement full monitoring and fine management to ensure that the performance indexes of duplexers are accurate. Through rigorous inspection and repeated testing, we ensure that each duplexer achieves optimal performance before it leaves the factory.

    Testing and Verification--Comprehensive Simulation to Ensure No Worries

    XST understands the importance of testing and validation, so we have built a multi-dimensional test environment for duplexers, simulating various extreme and complex usage scenarios to carry out comprehensive and in-depth examination of duplexers. From performance parameters to security features, we verify each and every one of them to ensure that the duplexer can operate stably under any conditions and provide users with a worry-free experience.

    After-sales support - Sincere professionalism, efficient service
    XST also attaches great importance to the customer experience. For this reason, the company has set up a team of skilled and courteous professionals to manage and track the progress of the project throughout the whole process. Whether in the duplexer selection stage, or in the manufacturing, delivery and subsequent after-sales service, customers can enjoy one-on-one technical support and customised services. This personalised service model not only allows customers to feel XST's sincerity and professionalism, but also greatly improves the efficiency of problem solving and customer satisfaction.XST is committed to establishing a long-term and stable relationship with customers through quality after-sales service, and jointly promoting the development and progress of the industry.

    Choose XST, choose to start a high-quality microwave devices worry-free journey, please feel free to contact us, we will live up to your trust!
