Double Ridge Waveguide Coaxial Converter

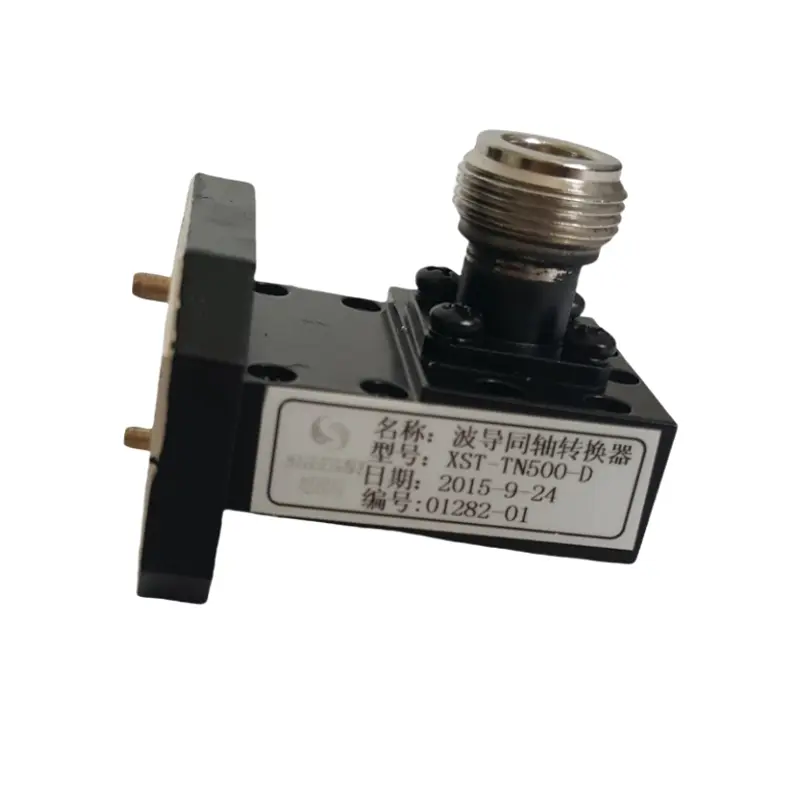

product description
Double ridge waveguide coaxial converters play an important role in the microwave and millimetre wave sector and are mainly used to realise signal conversion between different transmission lines, especially between double ridge waveguide and coaxial cables. Our double-ridge waveguide coaxial converters excel in real-world applications thanks to their outstanding performance: high frequency coverage (0.84-40 GHz), low loss characteristics, good impedance matching, high reliability and stability.
In order to meet the needs of different application scenarios, our double-ridge waveguide coaxial converters are highly flexible and customisable, with different flanges, connector types, materials, surface treatments and electrical specifications according to the user's needs.

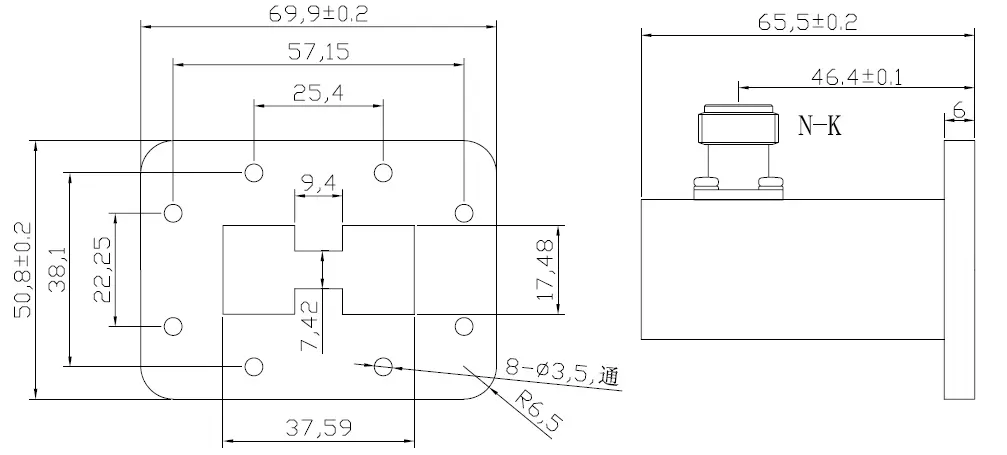

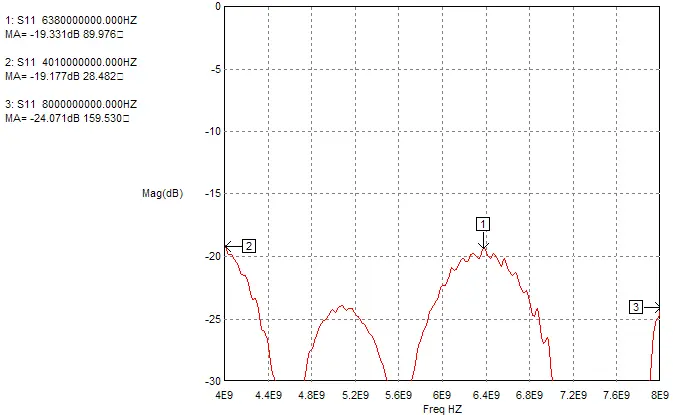

Technical indicators
| Model | Freq.Range | Insertion loss | VSWR | Lmm | Conn. Type | Conn. Type | |
| XST-DRTN150 | 1.5-3.6 | 0.3 | 1.4 | undetermined | N | 24JS1500 | WRD150D24 |
| XST-DRTN200 | 2-4.8 | 0.3 | 1.4 | undetermined | N | 24JS2000 | WRD200D24 |
| XST-DRTN250 | 2.6-7.8 | 0.3 | 1.4 | undetermined | N | 24JS2500 | WRD250D24 |
| XST-DRTN350 | 3.5-8.2 | 0.3 | 1.4 | undetermined | N | 24JS3500 | WRD350D24 |
| XST-DRTN475 | 4.75-11 | 0.3 | 1.4 | undetermined | N | 24JS4750 | WRD475D24 |
| XST-DRTN500 | 5-18 | 0.3 | 1.4 | undetermined | SMA | 24JS5000 | WRD500D24 |
| XST-DRTN580 | 5.8-16 | 0.3 | 1.4 | undetermined | SMA | 24JS15800 | WRD580D24 |
| XST-DRTN650 | 6.5-18 | 0.3 | 1.4 | undetermined | SMA | 24JS6500 | WRD650D24 |
| XST-DRTN750 | 7.5-18 | 0.3 | 1.4 | undetermined | SMA | 24JS7500 | WRD750D24 |
| XST-DRTN700 | 7-18.5 | 0.3 | 1.4 | undetermined | SMA | 24JS7000 | WRD700D24 |
| XST-DRTN1100 | 11-26.5 | 0.3 | 1.4 | undetermined | 2.92mm-K | 24JS11000 | WRD1100C24 |
| XST-DRTN1800 | 18-40 | 0.3 | 1.4 | undetermined | 2.92mm-K | 24JS18000 | WRD1800C24 |
Nots
Performance:
The selection of high-quality electronic components is the basis for ensuring stable product performance and accurate signal transmission. Together with advanced and mature technology manufacturing, it not only improves the precision and consistency of the product, reduces the defective rate and scrap rate in the manufacturing process, but also effectively guarantees the stable performance of the double-ridge waveguide coaxial converter in various complex environments, including wide bandwidth, low insertion loss, low standing wave, high reliability and long service life.
Quality:
XST has an independent and complete production line where product development, design, manufacturing and final testing are all done in-house. This effectively ensures that our Double Ridge Waveguide Coaxial Converter undergoes strict quality control inspections at every step of the process, from incoming raw materials to finished products. This comprehensive quality control system ensures that every detail of the Double Ridge Waveguide Coaxial Converter meets or exceeds industry standards, providing users with a highly reliable and stable experience.
Price:
External: XST establishes long-term and stable relationships with suppliers to achieve large-scale procurement of raw materials. This procurement method not only obtains more favourable prices, but also ensures a stable supply of raw materials and consistent quality.
Internal: XST has continuously optimised the production process to reduce unnecessary steps and waste, and improve production efficiency and resource utilisation. This process optimisation not only reduces costs, but also speeds up product delivery and improves customer satisfaction.
High Customer Satisfaction
Based on the excellent performance and reasonable price, XST dual-ridge waveguide coaxial converters have established a good reputation and brand image in the industry, winning the favour and praise of many customers including large communication enterprises, top research institutes and rigorous military units. These positive feedbacks not only strengthen the brand credibility, but also attract more attention from potential customers.
Please feel free to contact us, you will get the waveguide coaxial converter with the best price/performance ratio and superb service experience.
