Twenty-sixth research institute of China electronics technology group corporation deep co-operation with xst in the field of amplifiers and quadruple amplifier modules

2025-02-24

Supply products

Active Module/Amplifier/Quadruple Amplifier Module

Product Appearance


Customer Demand

The 26th Research Institute of China Electronics Technology Group Corporation (XXVI) provides indispensable technological support in many key areas such as national defence and security, cutting-edge scientific research, and medical and healthcare.

In this co-operation, XST has demonstrated its excellent professional ability and high quality service attitude as a high-tech enterprise. From design to manufacturing, XST has always maintained close communication and collaboration with Institute 26. Through regular meetings, progress reports and on-site exchanges, both parties ensured that every detail was thoroughly discussed and accurately understood. This efficient mode of co-operation not only greatly improves the work efficiency, but also ensures that the needs of the 26th Institute are accurately communicated and realised throughout the whole co-operation process.

Relying on XST's strict quality control system, each customised quadruple-amplifier module has stable performance and excellent quality. At present, our quadruple amplifier modules have been widely used in radar detection systems to significantly improve the remote detection capability and accuracy, providing more powerful technical support for national defence security.

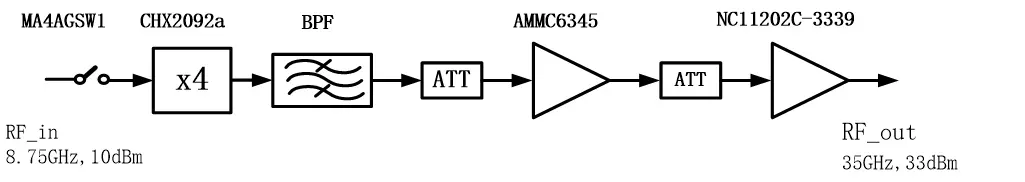

Quadruple Amplifier Module
Technical indicators
Parameter Index requirements Unit
(Input Frequency) 8.75 GHz
(Output Frequency) 35 GHz
(Input power) 10 dBm
(OUTput power) 33 dBm
(Rejection) 60 dBm
(Operating Voltaage) +8 ;-5 V
(VSWR) ≤1.8 :1
(Operating Temperature) -55~+70
(Non-operating Temperature) -55~+85
(RF Connectors Input/Output) SMA+cable(Input) /
(RF Connectors Input/Output) 2.92-K(Output) /
