Successful cooperation between 26th research institute of China electronics technology group corporation (cetc) and xst on power division amplifier and other karmic modules

2025-02-24

Supply products

Active Modules / Switching Controllers / Amplifiers / Power Divided Amplifier Modules

Product Appearance


Customer Demand

Customers
As a leader in piezoelectric and acoustic technology, the 26th Research Institute of China Electronics Technology Group Corporation (26th RI) has been committed to promoting the development and innovation of this field in China. Recently, the 26th Institute of Electronic Science and Technology Group Corporation (26th Institute), as a leader in piezoelectric and acoustic technology, has been committed to promoting the development and innovation in this field in China.
Testimonials
According to the feedback from the 26th Institute, XST power division amplifier modules not only show excellent quality and stable performance, but also win wide recognition for their excellent cost performance. These modules play a great role in practical applications. In the field of electronic countermeasures, these modules greatly enhance the information advantage and provide strong support for military communications and intelligence collection.
future outlook
For this cooperation, Institute 26 expressed great satisfaction and looked forward to continuing to deepen the cooperation with XST. In the future, both parties will continue to work together to contribute more to the national defence cause, promote the progress and development of related scientific research and technology, and jointly guard the security and prosperity of the country.

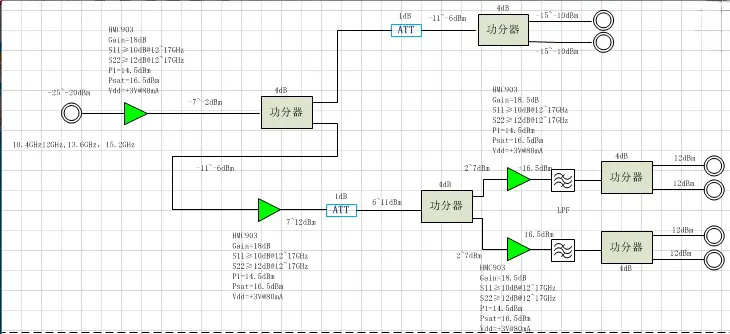

power division amplifier module
Technical indicators
Parameter Index requirements Unit
(Input Frequency) 10.4、12、13.6、15.2 GHz
(Input power) -25~-20 dBm
(OUTput power) -15~-10(Two of them) dBm
10~13(The other four routes)
(Input Frequency) 12.8、16.8; GHz
(Input power) -25~-20 dBm
(OUTput power) -15~-10(One of the routes) dBm
10~13(The other two routes)
(Rejection) 80 dBc
(Rejection) 15 dBc
(Operating Voltaage) +3.3;(2A) V
(VSWR) ≤1.8 :1
(Operating Temperature) -55~+70
(Non-operating Temperature) -55~+85
(RF Connectors Input/Output) SMP-JYD7-L /
