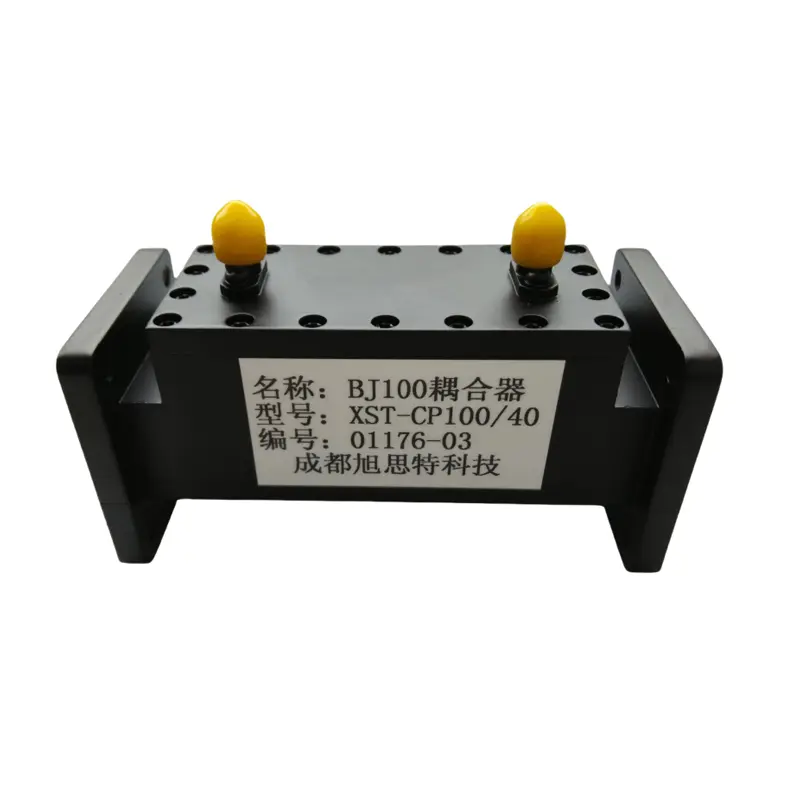

BJ100 Waveguide Coupler / 750MHz-40GHz Waveguide Coupler Tailor-made, Super Cost-effective

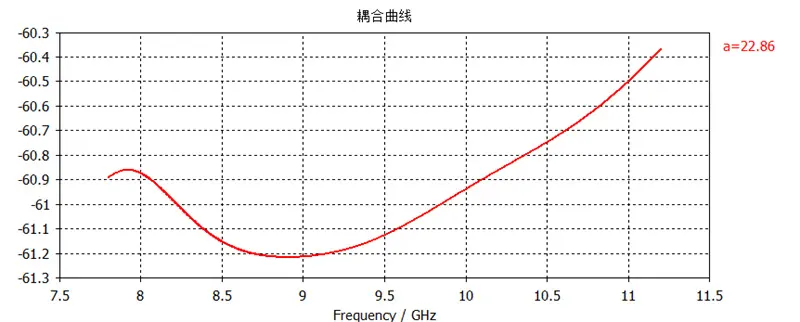

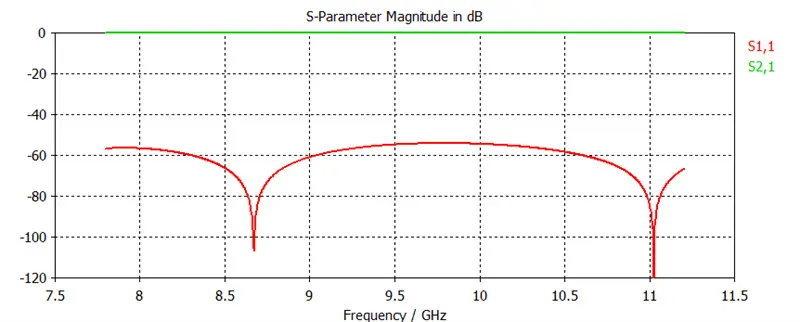

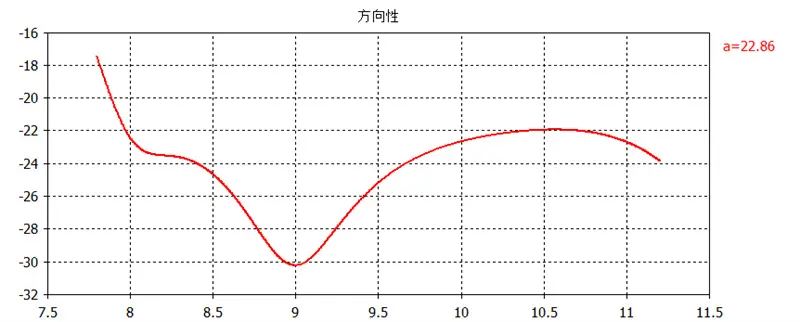

product description
A waveguide coupler is a device used in microwave and RF systems that allows electromagnetic wave energy to be transmitted or distributed between two or more waveguides.
XST Waveguide Coupler Remarks and Other Parameters:
Material: Aluminium (6061)

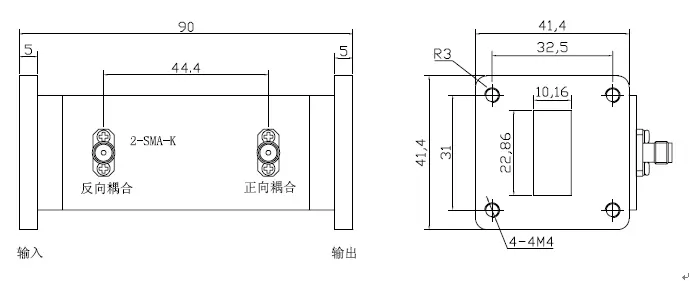

Unit: mm*mm*mm
Mounting form: Through hole;
Unnoted dimension tolerance: ±0.3mm;
Installation size tolerance: ± 0.1mm
Impedance environment: meet 50Ω system
Surface treatment: spray paint black
Working Temperature: -40℃~+70
Technical indicators
| Model | Freq.Range（GHz） | Band width | Insertion loss（dB） | VSWR | Coupling（dB） | Directivity（dB） | Conn. Type | Flange | |
| XST-CP9 | 0.75-1.15 | 20% | 0.3 | 1.15 | 3-60 | 15-30 | WR975 | BJ9 | FDP/FDM |
| XST-CP12 | 0.96-1.46 | 20% | 0.3 | 1.15 | 3-60 | 15-30 | WR770 | BJ12 | FDP/FDM |
| XST-CP14 | 1.13-1.73 | 20% | 0.3 | 1.1 | 3-60 | 15-30 | WR650 | BJ14 | FDP/FDM |
| XST-CP18 | 1.45-2.20 | 20% | 0.3 | 1.1 | 3-60 | 15-30 | WR510 | BJ18 | FDP/FDM |
| XST-CP22 | 1.72-2.61 | 20% | 0.3 | 1.1 | 3-60 | 15-30 | WR430 | BJ22 | FDP/FDM |
| XST-CP26 | 2.17-3.30 | 20% | 0.3 | 1.1 | 3-60 | 15-30 | WR340 | BJ26 | FDP/FDM |
| XST-CP32 | 2.60-3.95 | 20% | 0.3 | 1.1 | 3-60 | 15-30 | WR284 | BJ32 | FDP/FDM |
| XST-CP40 | 3.22-4.90 | 20% | 0.3 | 1.1 | 3-60 | 15-30 | WR229 | BJ40 | FDP/FDM |
| XST-CP48 | 3.94-5.99 | 20% | 0.3 | 1.1 | 3-60 | 15-30 | WR187 | BJ48 | FDP/FDM |
| XST-CP58 | 4.64-7.05 | 20% | 0.3 | 1.1 | 3-60 | 15-30 | WR159 | BJ58 | FDP/FDM |
| XST-CP70 | 5.38-8.17 | 20% | 0.3 | 1.1 | 3-60 | 15-30 | WR137 | BJ70 | FDP/FDM |
| XST-CP84 | 6.57-9.99 | 20% | 0.3 | 1.1 | 3-60 | 15-30 | WR112 | BJ84 | FBP/FBM/FBE |
| XST-CP100 | 8.20-12.40 | 20% | 0.3 | 1.1 | 3-60 | 15-30 | WR90 | BJ100 | FBP/FBM/FBE |
| XST-CP120 | 9.84-15.0 | 20% | 0.3 | 1.1 | 3-60 | 15-30 | WR75 | BJ120 | FBP/FBM/FBE |
| XST-CP140 | 11.9-18.0 | 20% | 0.3 | 1.1 | 3-60 | 15-30 | WR62 | BJ140 | FBP/FBM/FBE |
| XST-CP180 | 14.5-22.0 | 20% | 0.3 | 1.1 | 3-60 | 15-30 | WR51 | BJ180 | FBP/FBM/FBE |
| XST-CP220 | 17.6-26.7 | 20% | 0.3 | 1.1 | 3-60 | 15-30 | WR42 | BJ220 | FBP/FBM/FBE |
| XST-CP260 | 21.7-33.0 | 20% | 0.3 | 1.15 | 3-60 | 15-30 | WR34 | BJ260 | FBP/FBM/FBE |
| XST-CP320 | 26.5-40.0 | 20% | 0.3 | 1.15 | 3-60 | 15-30 | WR28 | BJ320 | FBP/FBM/FBE |
Nots
XST Corporation
As a coupler source factory with 12 years of profound heritage, XST has constructed a comprehensive and rich coupler product line, with every step of the process from coupler R&D, precision manufacturing to rigorous testing meticulously completed in-house. This vertically integrated production model not only greatly improves production efficiency and effectively reduces costs, but also gives XST the keen ability to quickly respond to market changes, ensuring that every coupler meets superior quality standards.
XST is equipped with industry-leading production facilities and state-of-the-art technology, which gives us a high degree of flexibility while guaranteeing large-scale production capacity. We are able to quickly adjust our production plan according to the slightest fluctuation in the market, and realise the flexible production mode of couplers with multiple varieties and small batches to meet the diversified needs of our customers.
Through the implementation of a strict quality control system, combined with advanced testing equipment and a professional quality inspection team, XST has carried out layers of product quality control to ensure that every piece of coupler meets or even exceeds customers' expectations. At the same time, we are constantly pursuing the improvement and innovation of our production process, and are committed to improving the quality of our products in order to meet our customers' unremitting pursuit of high quality couplers, especially high directional couplers. At XST, quality is not only a promise, but also our unchanging faith.
Quality and Price
We understand that the pursuit of high cost performance is the common desire of every customer. For this reason, we are committed to offering the most competitive prices in the market, allowing you to enjoy quality couplers while effectively controlling costs. Despite our attractive prices, our commitment to quality and service is always the same.
Our price advantage comes from our efficient production process and strict cost control, ensuring that you get couplers that exceed your expectations at a great value price. We insist on price transparency and no hidden costs, giving you added peace of mind when choosing a coupler. At the same time, we provide comprehensive after-sales service to ensure that every investment you make is worthwhile.
XST stands out among couplers with its excellent quality, affordable price and perfect service. We look forward to working with you, not only to provide you with quality products, but also committed to creating long-term value and satisfaction for you.
Efficient Production, Fast Delivery
With 6 production lines, XST's capacity utilisation is always at a high level, and resources such as equipment, personnel and space are fully and efficiently utilised to reduce idleness and waste. We focus on teamwork and communication mechanisms to ensure that all departments work closely together to improve production efficiency.
Our production cycle is generally 2-3 weeks, we can also provide expedited production services, we will do everything possible to help you receive your products as soon as possible. Whether you have a small or large quantity of coupler needs, we can ensure that your order is executed in a timely manner, produced efficiently and delivered on schedule.
Send your request now and we will get back to you as soon as possible to meet your timely needs.
