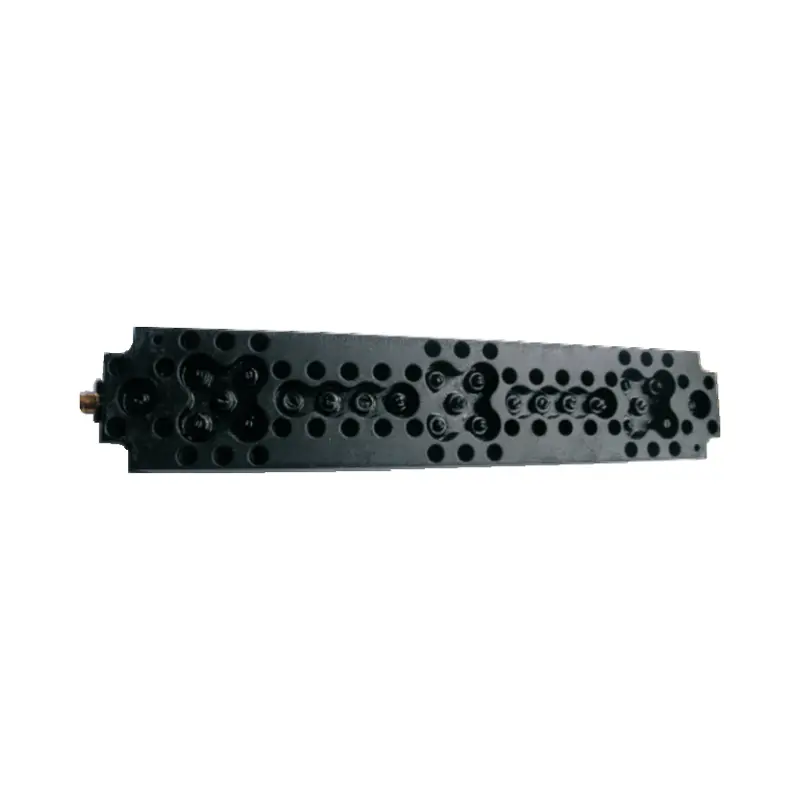

Bandstop Filters / Customised 200MHz-68GHz Cavity Bandstop Filters

Features

GJB9001B-2009 Military Industrial Certification
ISO9001:2008 quality certification
- Frequency coverage 0.5-18GHz
- Small size, low insertion loss
- Long parasitic passband, moderate Q
- Suitable for high power transmission
- Widely used in base stations, EMI/EMC testing.

XST offers OEM and ODM services for power dividers with free samples and MOQ≥1.
If you have any questions, please send your questions and needs.

    Characteristics and Application

    The ability of XST's band-stop filters to accurately filter out noise or interference in a specific frequency range is their most basic and important characteristic. Effective suppression of noise at a specific frequency can be achieved by adjusting the filter's design parameters such as centre frequency, stopband width and attenuation.

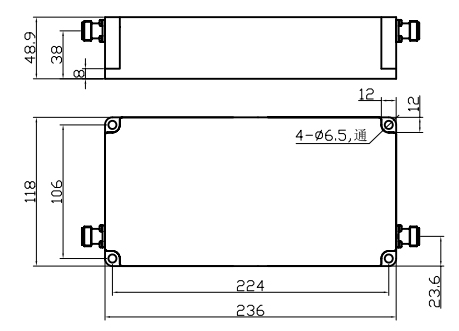

    Product Principle

    product-description1

    Technical Index

    Model Freq.Range Insertion loss Passband Passband Stopband Conn.Type Material Appearance Dimension
    BSF275MFN 272-278MHz 4dB DC-271MHz 279-870MHz 45dB F-seat British system aluminium Black paint 270*150*100mm
    BSF315MNN 314-316MHz 2dB DC-312MH 318-800MHz 40dB N-K aluminium Black paint 400*300*255mm
    BSF451MFN 447-455MHz 1.5dB DC-443MHz 459-850MHz 45d8 F-seat British system aluminium Black paint 200*150*100mm
    BSF806MNN 791-821MHz 2.5dB DC-763MHz 829-2000MHz 60dB N-K aluminium Black paint 324*108*70mm
    BSF836.5MNN 824-849MHz 1.5dB DC-809MHz 864-2250MHz 60d8 N-K aluminium Black paint 244*80*62mm
    BSF840MNN 835-845MHz 1.5cB DC-821MHz 851-1970MHz 45dB N-K aluminium Black paint 180*60*50mm
    BSF875MNN 870-880MHz 2.5dB DC-860MHz 890-3000MHz 60dB SMA-K aluminium Black paint 300*150*62mm
    BSF945MNN 930-960MHz 2d8 DC-920MHz 970-3000MHz 60dB N-K aluminium Black paint 322*114*54mm
    BSP905.5MNN 851-960MHz 2.5dB DC-830MHz 980-2000MHz 30dB N-K aluminium Black paint 255*155*60mm
    BSF1747.5MSN 1710-1785MHz 1.5dB DC-1690MHz 1805-3300MHz 60dB SMA-K aluminium Black paint 320*72*55mm
    BSF1842.5MNN 1805-1880MHz 1.5dB DC-1785MHz 1900-3000MHz 50dB N-K aluminium Black paint 398*78*40mm
    BSF2GSN 1880-1920MHz 1.5dB DC-1830MHz 1.93-4GHz 60dB N-K aluminium Black paint 320*72*55mm
    BSF1.88GNN 1850-1910MHz 1.5dB DC-1830MHz 1930-4000MHz 60dB N-K aluminium Black paint 320*72*65mm
    BSF1960MSN 1930-1990MHz 3dB DC-1920MHz 2-3GHz 70dB N-K aluminium Black paint 240*75*54mm
    BSF2350MSN 2.3-2.4GHz 3dB DC-2234MHz 2480-4000MHz 60dB SMA-K aluminium Black paint 190*47*45mm
    BSF2595MNN 2575-2615MHz 3dB DC-2565MHz 2624-4000MHz 50dB N-K aluminium Black paint 240*75*54mm
    BSF1985MNN 1800-2170MHz 2.5dB DC-1770MHz 2200-4000MHz 30dB N-K aluminium Black paint 380*115*45mm
    BSF6.08GSN 5.78-6.38GHz 3dB DC-5600MHz 6.78-18MHz 40dB SMA-K aluminium Black paint 77*15*15mm
    BSF7.9GWN 7.66-8.14GHz 1dB DC-6.9GHz 8.8GHz-10GHz 50dB BJ84flange aluminium Black paint 100*48*48mm
    BSF68GWN 68.1-67.9 GHz 1dB 50-67.5GHz 68.5-75GHz 60dB V-waveguide flange copper Black paint 80*40*40mm

    Nots

    Stable Performance
    XST's band reject filters play an important role in various fields with their excellent performance such as precise frequency rejection, stability and reliability, flexibility and adaptability, as well as low distortion and low noise. With the unremitting efforts of our excellent engineers, the performance of our band-stop filters will also continue to improve, providing more efficient and reliable solutions for more application scenarios.

    Excellence in Quality
    XST is a leading company specialising in the development and manufacture of high quality band reject filters, we are committed to providing our customers with superior products and services. Advanced technology and stringent quality control enable each filter to meet industry standards. We understand that accurate signal filtering is critical to the overall performance of a system, so we continue to innovate and strive for perfection in every detail.

    Customisation Services
    Our customisation capabilities allow us to provide filter products tailored to our customers' specific needs, ensuring optimum performance in a variety of application scenarios. Whether you are conducting scientific research, industrial applications, military defence or consumer electronics development, XST's filters provide you with a unique and reliable signal processing solution.

    XST's band reject filters have won wide acclaim in the industry for their outstanding performance. The superior frequency selectivity of our filters ensures accurate signal transmission, and the extremely low distortion and noise characteristics allow for clear and reliable signal processing. In addition, our products excel in stability and reliability, and are capable of sustained operation in a variety of demanding environments to meet our customers' high standards.

    Send us your request to experience the benefits of XST's high-performance band-stop filters!
