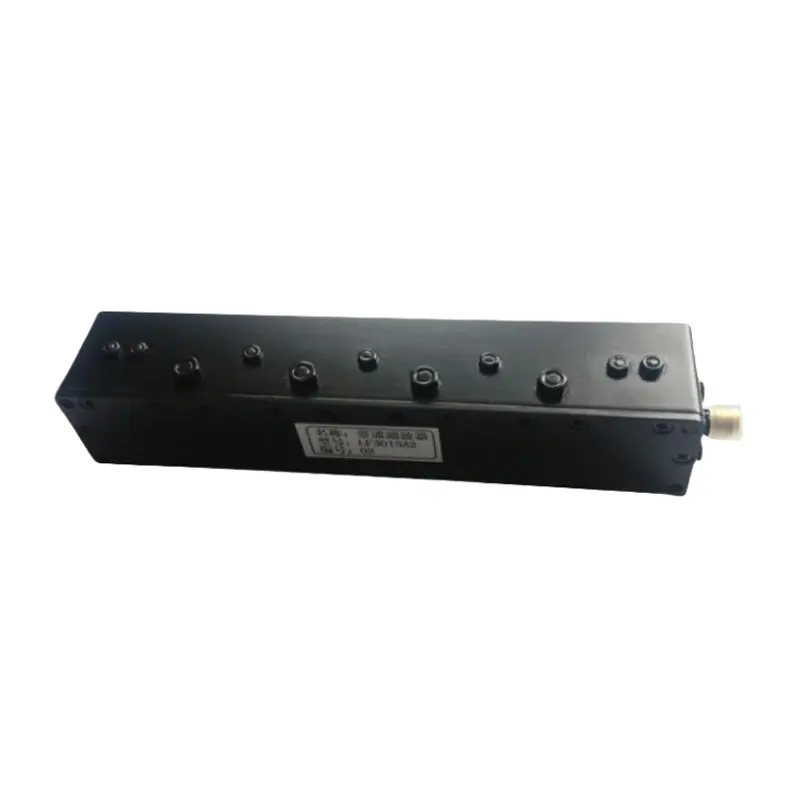

1.4GHz-45.5GHz Bandpass Filter - Passive/Active Bandpass Filter Customisation
Characteristics and Application
1. Selectivity: Band pass filters can select a specific frequency range of signals to pass through, while suppressing signals in other frequency ranges.
2. Frequency range: Band pass filters can be adapted to different applications by adjusting the centre frequency and bandwidth.
3. Signal Enhancement: It can be used to enhance the signals in a specific frequency range, as well as to remove the noise in other frequency ranges.
4. a variety of structures: bandpass filters can be used in different filter structures, such as RC filters, LC filters, digital filters and so on.
The filters produced by xst are not only strong in frequency selection and filtering ability, but also excellent in quality, stable in performance, reasonable in price and perfect in after-sale service.
if you have any demand, please feel free to contact us, we will answer your questions.
Technical indicators
| Product Name | Bandpass filter |
| Frequency Range | 2195MHz -2205MHz |
| Insertion Loss | ≤3db |
| VSWR | ≤1.2 |
| Out-of-band rejection | 20dB@ F0±10MHz |
| port connector | SMA-K |
| Phase consistency | ≤±3° |
| Impedance | 50 OHMS |
Nots
Material: Aluminium / Copper / Silver Plated
Unit: mm*mm*mm
Installation form is through-hole;
Unnotched dimension tolerance: ±0.3mm;
Installation size tolerance: ± 0.1mm
working temperature range of the filter: -40℃~+70℃.
Filter storage temperature range: -55℃~+85℃.
Customer Concerns
XST Company
XST is a professional microwave device manufacturer, especially a leading company in the field of filters, power dividers, couplers, combiners and amplifiers.
With extensive industry experience, XST has provided a large number of high-performance products and services to companies in the communications, navigation, radar, defence and military industries.
XST focuses on tailor-made solutions for customers, efficient production processes, strict quality control, perfect after-sales service, and has won the high praise of market partners at home and abroad, XST, rest assured that safety is preferred.
Quality
XST thrives on quality. Our filters are manufactured under a strict quality control system to ensure optimum performance, reliability and durability. We use advanced manufacturing techniques and reliable materials to produce filters with excellent signal processing capability and minimise signal loss. The filters produced by Asustek are widely used in aviation, aerospace, radar, communications, electronic countermeasures, radio and television. We have won the recognition and trust of customers in various industries.
Price
As a large source factory of microwave components, we offer very competitive ex-factory prices. Efficient manufacturing processes and cost-effective measures enable us to offer high quality filters at reasonable prices. Our pricing structure is designed to provide our customers with a great value for their investment, ensuring that they receive a top quality product without compromising their budget.
Service
Our highly skilled technical team leaders manage and track projects from product selection, manufacturing, delivery and after sales, and are committed to providing timely and effective one-on-one support to ensure consistency of product and service, and a smooth experience for every customer.
1. OEM and ODM services available
2. 24 hours X 7 days service
3. 3 years warranty
4. Lifetime technical support
All of our microwave devices, including filters, couplers, power dividers, combiners, duplexers, isolators, attenuators, loads, etc. can be customised according to your requirements, and we provide OEM and ODM services as well as 3-year warranty and lifetime technical support services.
Please feel free to contact us and we will reply your enquiry promptly.
